Repairing Lumière film

Repairing Lumière film stock perforations
 Sean Mosely

There are always challenges with the conservation of films that have completed their life cycles many decades ago. The job of the Audiovisual Conservation Laboratory (AVCO) is to come up with innovative ways to restore the film stock so that it can be handled by current methods of preservation. The following describes how we managed to get century old film from the Lumière collection to work alongside modern printing technology.

Firstly, the film stock was approximately 115 years old. As such, these films were very brittle and most of the perforations (the holes in the side of the film) were broken. This meant that the majority of perforations needed to be repaired or reinforced with splicing tape.

The second problem we encountered was that Lumière films do not have standard perforations. Back in the day (circa 1895), the Lumière brothers used a 35mm film that had one circular perforation per frame. This approach was not popular with other film companies, and the developing industry soon settled on standards of four perforations (perfs) per frame.

By the time the need for conserving these films came around in 2011, there were no mass-produced film repair tools which could cope with Lumière stock. This meant that we needed to develop a new approach for cleanly cutting out the circular perforations for use in a Lumière-compatible printing gate. Our printing gate had been custom-made by the NFSA’s resident machinist and engineer, Wayne Young.

After experimenting with several different approaches, these were the steps taken during the films repair to perforations:

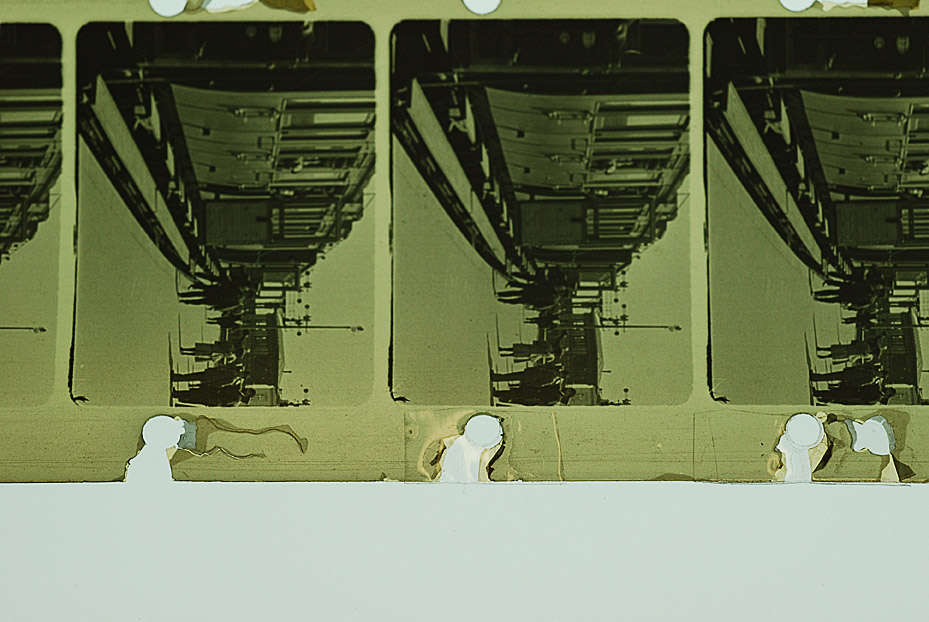

  1. The Lumière film is identified with damage to perforations.
  2. A small piece of clear splicing tape was cut and placed onto scrap film stock.
  3. A 2.5mm hole punch was used to cut a Lumière perforation-sized hole in the splicing tape. We placed a block of soft metal (aluminium) underneath the film stock to help protect the edge of the hole punch.
  4. We then lined up the splicing tape so that the hole matched up with the perforation on the film. The tape was trimmed so that the top edge did not cover any part of the actual film frame. This was to ensure that the edge of the splicing tape would not be made visible when reprinting the film onto new stock.
  5. A metal edge was used as a guide, as we trimmed the splicing tape to be in line with the edge of the film.
  6. Finally, the perforation has been repaired… Well, almost. For perforations where sections of the film are missing (as opposed to splits or cracks), we repeated the process on the other side of the film. This was to ensure the exposed tape did not pick up dust and debris, or so the film didn’t stick to itself when wound up. This approach allowed us to reinforce the film perforations while minimising the amount of blade contact with the film.

Step-by-step repair to Lumière film stock perforations
